Circuit Switcher. Learn About Our Horizontal Circuit Switchers Southern States The circuit switcher product line, including the CSV, CSV-CB, CSV-DB, and CSH, was created in response to the demand for improved transformer switching and protection at a competitive cost between aditionatr l power fuses and circuit brea 3 The interrupting ratings shown are applicable for the following duty cycles: O or CO

Unlike traditional general purpose circuit breakers, these devices account for the fast rate-of-rise transient recovery voltage (TRVs) during the interruption of a transformer limited fault. Series 2000 Circuit-Switcher interrupters are driven by a single, stored-energy mechanism located at ground level

Learn About Our Vertical Circuit Switchers Southern States

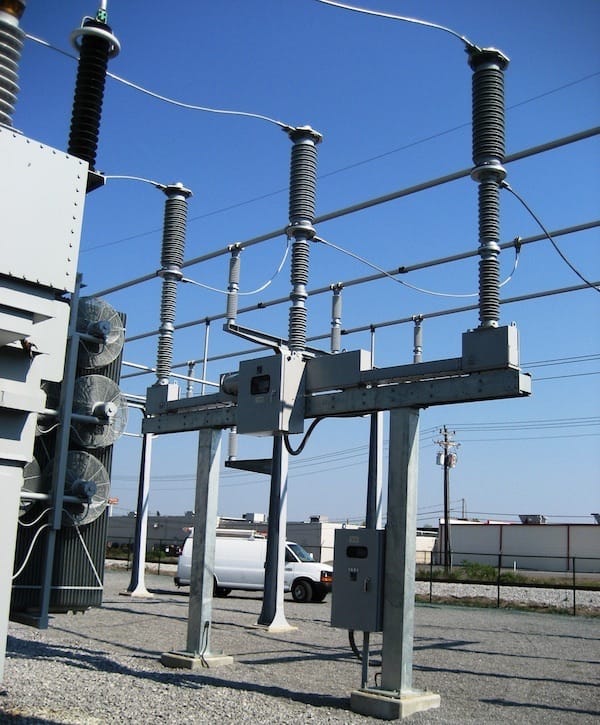

What is an S&C Circuit Switcher? An S&C circuit switcher is a type of switcher made by S&C Electric Company. Southern States' CSV ("candlestick") circuit switcher, with vertical interrupters, is designed specifically for transformer protection and switching applications where substation space is limited All circuit making and breaking operations are accomplished in SF 6, eliminating open air arcs

Learn About Our Vertical Circuit Switchers Southern States. It is typically installed on the high voltage side of the transformer The operator directly drives the interrupters open and closed through a simple, high-speed power train

Learn About Our Horizontal Circuit Switchers Southern States. Circuit switchers are now available in vertical interrupter design (see Fig 2 - picture above) or horizontal interrupter design configurations with (see Figure 3) or without (see Figure 4) an integral disconnect switch.The earliest circuit switchers had a 4 kA symmetrical primary fault current interrupting capability, but. The Southern States family of horizontal interrupter circuit switchers are ideally suited for transformer protection on systems with fault currents up to 40 kA
